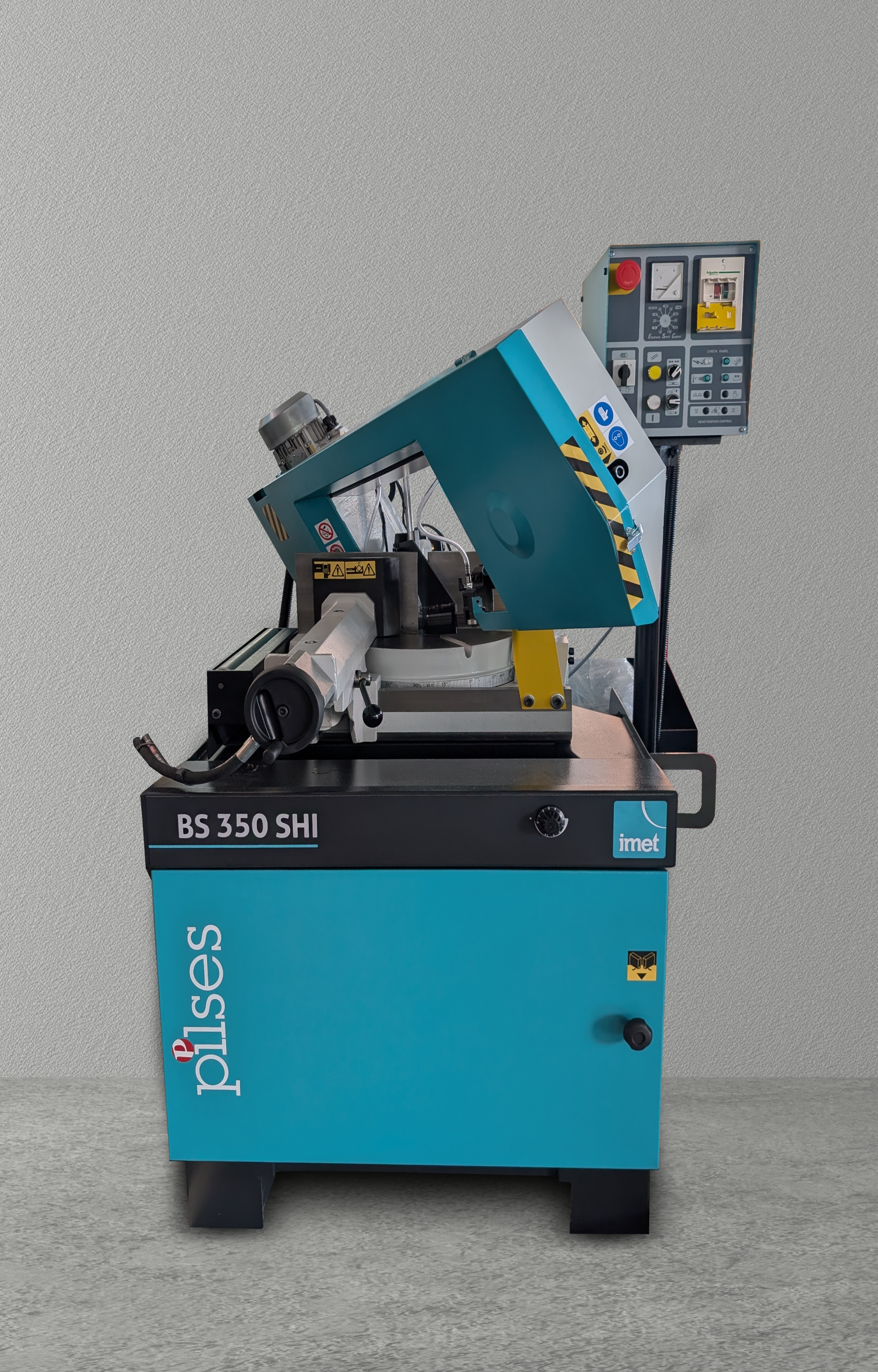

Hydraulic band saw BS 350 SHI
REF:
Suitable for cutting solid and medium production profiles in a wide range of materials, including high strength. Cut at an angle up to 45 ° to the right and up to 60 ° to the left.
Ask for quotation
Any questions? Contact us
Información adicional
Technical information:
Cutting capacity at 0° | Round: 305mm Square: 250mm Rectangular: 350x200mm |
Cutting capacity at 45° left | Round: 250mm Square: 230mm Rectangular: 230x200mm |
Cutting capacity at 45° right | Round: 255mm Square: 230mm Rectangular: 230x200mm |
Cutting capacity at 60° left | Round: 175mm Square: 155mm Rectangular: 170x100mm |
Cutting capacity solid material (C45) | Round 200mm |
Cutting capacity bundle cutting | Max: 230x160mm Min: 90x10mm |
Blade motor | 1.5/2.2 KW |
Blade motor with ESC speed variator | 2.2 KW |
Blade speed | 37/74 m/min |
Blade speed with ESC speed variator | 18/100 m/min |
Blade size | 3370x27x0.9mm |
Height of the work surface | 940mm |
Weight | 649kg |
Dimensions | 1480x1750x1900mm |
