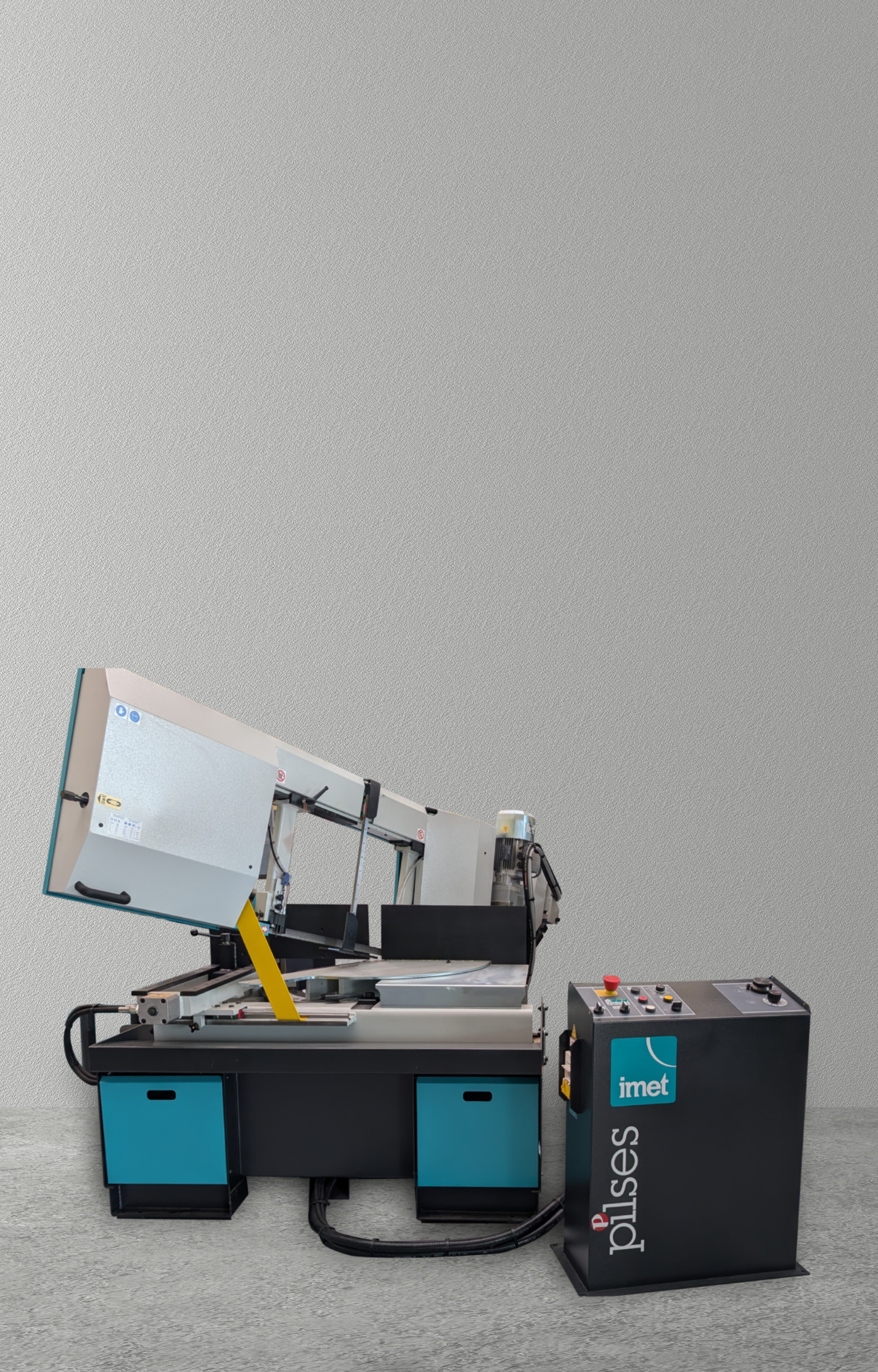

KS 620 semi-automatic band saw

REF:

The KS saws are the only ones in their class that can cut 60 ° right and left by positioning the locking vice only once. The vice is sliding transversely on the support surface with locking and rapid approach.

Ask for quotation

Any questions? Contact us

Información adicional

Technical information:



Cutting capacity at 0° Round: 500mm
Square: 420mm
Rectangular: 600x400mm
Cutting capacity at 45° left/right Round: 445mm
Square: 410mm
Rectangular: 450x250mm
Cutting capacity at 60° left Round: 320mm
Square: 290mm
Rectangular: 280x350mm
Cutting capacity at 60° right Round: 245mm
Square: 240mm
Rectangular: 240x310mm
Cutting capacity (BUNDLE) Max: 500x300mm
Min: 160x40mm
Cutting capacity at 0° solids (C45) 250mm
Blade size 5320x34x1.1mm
Blade speed 15-100m/min
Blade 3KW
Working table height 805mm
Blade inclination
Weight 1450kg
Dimensions 1705x2500x2500mm
